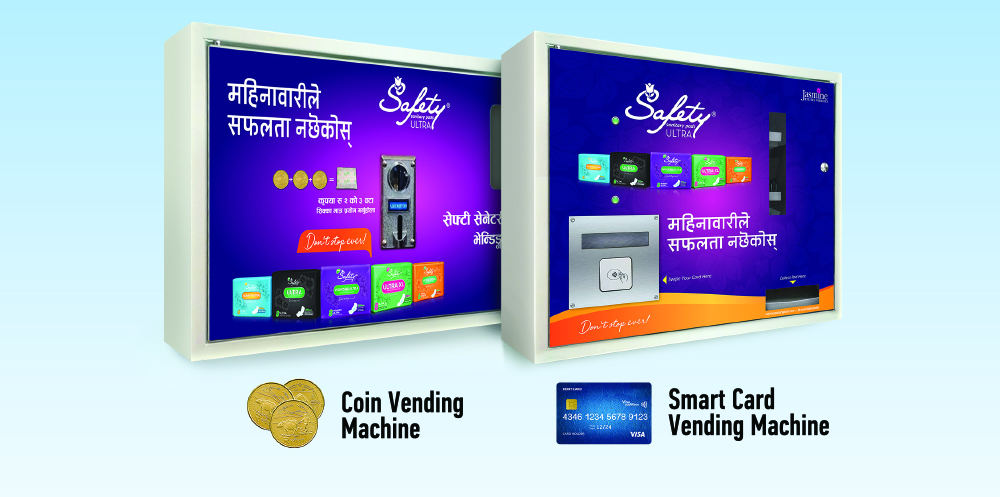

Safety Sanitary Pad Vending Machine

Card Access Sanitary Pad Vending Machine

Human Interface	Smart intelligence Mifare Card Reader and Writer solution
Display	16*2 LCD Display which shows rate for each row of Napkin
Card Acceptance	Yes
Card recharge	In build within system itself and Processed by Recharge Cards
Napkin Capacity	60
Dimensions	600X180X550 (1 X W X h) in mm
Product View	Yes, Transparent Window for Physical inspection of Napkins availability.
Wall Mountable	Yes
Rate Setting i.e. Rs Per Napkin	Within the System itself (Can be changed using PIN)
Working Operation	Select the Rack or Row and show the user card to dispense the Napkin. The amount that is set as rate of napkin will be deducted from the card and Napkin will be Dispensed.
Power	230V AC,50Hz
Battery Backup	Yes, 12 V 7AH Battery, Provides battery Backup for 12-16 Hrs

Human Interface	Smart intelligence Multi Coin accepter solution
Display	16*2 LCD Display which shows rate for each row of Napkin
Coin Acceptance	Nepali Rupees
Stock Maintain Facility	User need to update the stock at the time of Napkin refill. It counts each napkin at time of dispense. If there is no napkin, It shows error As “No Napkin”.
Napkin Capacity	30
Product View	Yes, Transparent Windows for Physical inspection of Napkins availability.
Wall Mountable	Yes
Rate Setting i.e. Rs Per Napkin	Within the System itself (Can be only changed using PIN)
Working Operation	Select the Rack or Row and Insert Appropriate Amount of Value of coins to dispense the Napkin at the drop of coin.
Power	230V AC,50Hz
